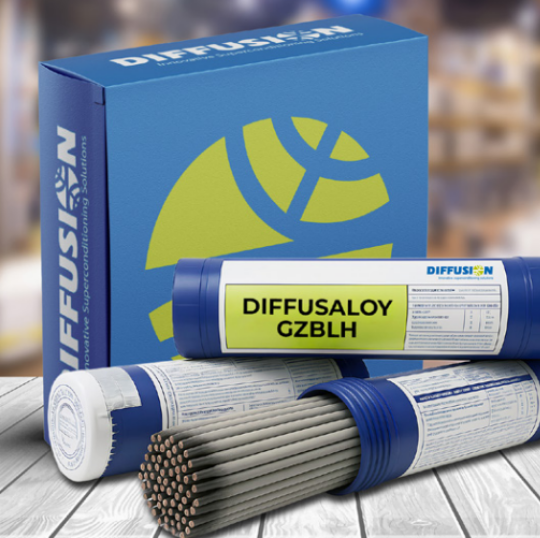

DIFFUSALOY GZB LH

DIFFUSALOY GZB LH

It is a specially developed electrode with a unique coating that makes possible to deposit a weld metal which is almost pure iron, containing very little silicon and carbon

PRODUCT DESCRIPTION:

Deposits with little silicon, carbon & low manganese
makes it ideal for repair of galvanized bath tanks.
The repairs made by GZB-LH which has a weld metal
composition having carbon and silicon less than 0.05%,
have excellent resistance to corrosion by molten zinc
provides long lasting corrosion resistance

Add to List

Applications

STANDARD:

NA

ALLOYING ELEMENTS:

C, Si, Mn

TENSILE STRENGTH:

43 Kgf/mm2 (Min)

ELONGATION:

30% (Min)

PACKAGE SIZES:

5 KG, 20 KG

TIP COLOR

GREY

COATING COLOR

LIGHT GREY



Size Welding Amperage
3.15 mm 110-130 A
4.00 mm 140-180 A
5.00 mm 200-240 A

Product Specification

• Weld metal nearly pure iron
• Extremely low zinc corrosion
• Ideal for zinc immersion conditions
• Crack-resistant and durable

• Carbon < 0.05%
• Silicon < 0.05%
• Very low manganese
• Practically pure iron

• Grind to remove fatigued metal
• Hold at right-angle to travel
• No weaving during weld
• Avoid arc gap; contact arc

• Galvanizing bath tanks
• Worn tank edge buildup
