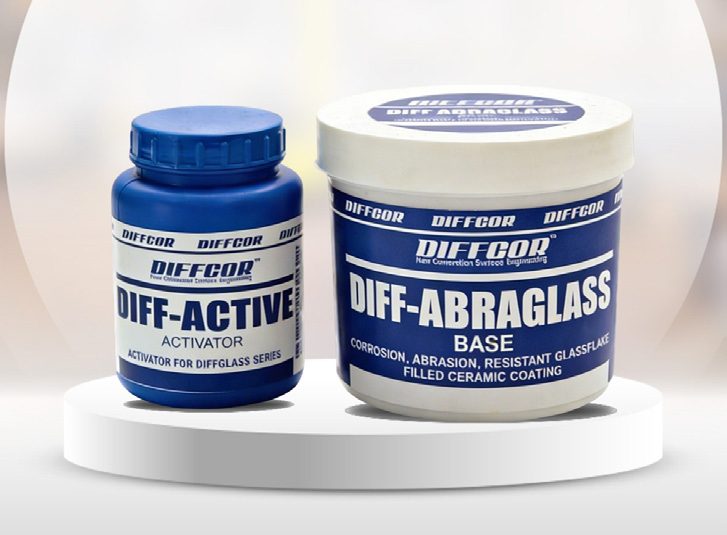

DIFF ABRAGLASS

DIFF ABRAGLASS

Abrasion resistant epoxy novolac vinyl ester coating with ceramic fillers.

DESCRIPTION:

DIFF ABRAGLASS is a highly cross-linked epoxy novolac vinyl ester resin coating reinforced with silicon carbide and ceramic fillers for severe erosion and abrasion protection.

Add to List

Applications

Product Specification

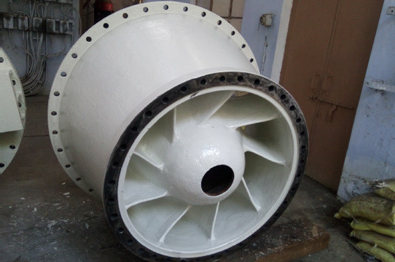

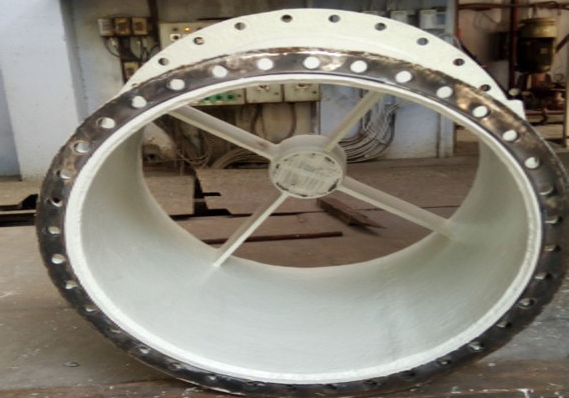

Pipe elbows, chutes, pump casings, pipelines, agitators



Technology Epoxy novolac vinyl ester
Chemical Type Vinyl Ester
Components Two-component
Cure Mechanism Ambient thermosetting
Temperature Range (°C) 121–150
Appearance – Base Not specified
Appearance – Hardener Not specified
Appearance – Mixed Not specified
Mix Ratio (Volume) 98.5 : 1.5
Mix Ratio (Weight) 98.5 : 1.5



Viscosity – Base Not specified
Viscosity – Hardener Not specified
Viscosity – Mixed Not specified
Weight per Liter-Base (kg) Not specified
Weight per Liter-Hardener (kg) Not specified
Coverage 2.5 kg / m² @ 1mm



Compressive Strength 7000 – 7500 psi
Flexural Strength 8000 – 8500 psi
Hardness 80 – 85
Tensile Strength 4500 – 5000 psi
Elongation at Break (%) 1.5
Shear Strength 2000 – 2500 psi
Salt Spray Resistance 5000 hours
