Loading...
DIE-BUILD-E

DIE-BUILD-E

Basic-coated low-carbon alloy steel electrode similar to H12, offering superior high-temperature wear resistance and hot cracking resistance.

PRODUCT DESCRIPTION:

• Low-carbon alloy steel weld metal, H12-equivalent.
• Excellent hot cracking and thermal shock resistance.
• Superior high-temp wear resistance vs. DIE–BUILD–N.
• As-welded hardness: 41–45 HRC, machinable.

Add to List

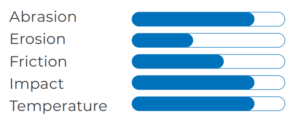

Applications

STANDARD:

DIN EN 14700 E FE 3-45-SPT

ALLOYING ELEMENTS:

C, Si, Mn, Cr, Mo, Ni, W, V

HARDNESS:

41-45 HRC

Size Welding Amprerage
3.15 mm 80-110 A
4.00 mm 100-140 A
5.00 mm 130-170 A

Product Specification

• Ideal for large composite dies and extensive repairs.
• Maintains hardness and wear resistance at elevated temperatures.
• Hardness adjustable via post-weld heat treatment or tempering.
• High resistance to thermal shock.

• Low carbon, Cr-Mo-V alloy similar to H12.
• Designed for hot-working applications with superior wear resistance.

• Keep electrodes completely dry.
• Remove fatigued/work-hardened material by gouging or grinding.
• Preheat base metal 300–550 °C (depending on die size/thickness).
• Use stringer beads, short arc; weave ≤3× electrode dia.
• Peen weld deposit after welding.

• Control hardness with post-weld heat treatment/tempering.
• Building and repair of large hot-forging composite dies.
• Lining of tools, dies, rotary drills, piercing tools, mandrills.

Related products

  • TUBALLOY-23
    High-alloy tubular electrode for severe abrasion and erosion resistance...
  • DIFF DUR B
    Nickel-cored flexible rod with cast tungsten carbide for corrosion...
  • CORDIFF 400 OA
    Low-alloy flux-cored wire for tough, impact-resistant hardfacing (~450 BHN)....
  • DIFF DUR NISE (AC/DC+)
    Tubular electrode with fused tungsten carbide and Ni-Cr-B-Si matrix...
