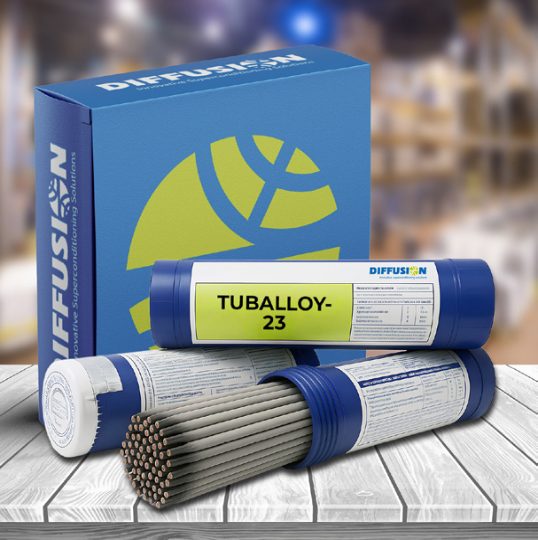

TUBALLOY-23
High-alloy tubular electrode for severe abrasion and erosion resistance up to 800°C.
PRODUCT DESCRIPTION:
• Hard austenitic matrix with Cr, Nb, Mo, V carbides
• Withstands extreme abrasion and erosion
• Effective at ambient and elevated temperatures (up to 800°C)
Applications
STANDARD:
14700 EFe 16-65 GZT
ALLOYING ELEMENTS:
C, Si, Mn, Cr, Mo, Nb, V, W
HARDNESS:
AS DEPOSITED: 56-60 HRC
MULTILAYER: 62-64HRC
PACKAGE SIZES:
5 KG, 20 KG
TIP COLOR
RED
COATING COLOR
LIGHT GREY
| SIZE | WELDING AMPERAGE |
|---|---|
| 6.30 mm | 80-125 A |
| 8.00 mm | 140-190 A |
| 10.00 mm | 190-250 A |
Product Specification
• Delivers durable performance with minimal layers
• High-temperature wear resistance
• Excellent erosion & abrasion protection
• Strong metallurgical bonding
• Optimized for 2-layer deposition
• Chromium carbides
• Niobium carbides
• Molybdenum carbides
• Vanadium carbides
• Gouge/grind fatigued base metal
• Limit to 2-layer deposition
• Maintain short arc
• Apply stringer beads only

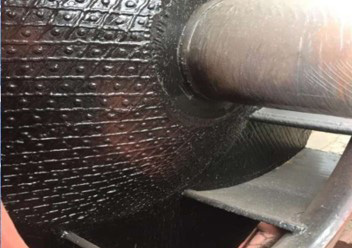

• Sinter fans
• Cement kiln plates
• Clinker wear plates
• Furnace bells & hoppers
