UNIMETAL

UNIMETAL

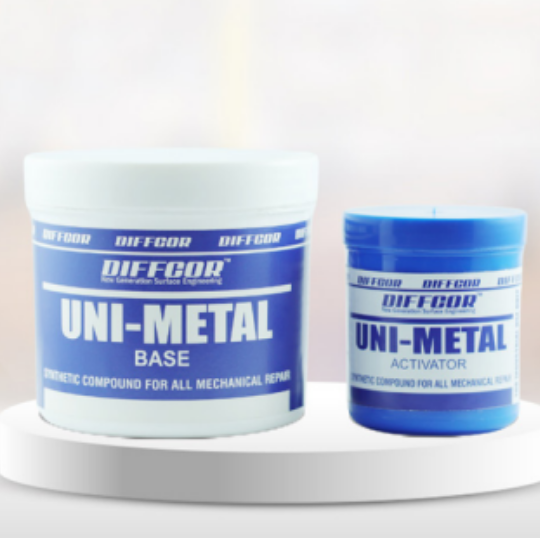

Universal metal repair paste

PRODUCT DESCRIPTION:

Two-part epoxy repair composite reinforced
with ferrous silicon steel alloy for metal repair
and resurfacing.

Applications

Product Specification

TYPICAL APPLICATIONS:

Repair of cracks, holes, shafts, flanges, pump
casings, pipes and tanks

PHYSICAL PROPERTIES

Technology	Epoxy
Chemical Type	Epoxy
Components	Two-component
Cure Mechanism	Room temperature cure
Temperature Range (°C)	20–180
Appearance – Base	Black
Appearance – Hardener	White
Appearance – Mixed	Grey
Mix Ratio (Volume)	3:1
Mix Ratio (Weight)	3.5:1

UNCURED MATERIAL PROPERTIES

Viscosity – Base	Paste
Viscosity – Hardener	Paste
Viscosity – Mixed	Putty / Paste
Weight per Liter-Base (kg)	2.45
Weight per Liter-Hardener (kg)	1.55
Coverage	0.37 m² @ 1 mm thickness / kg

TYPIAL CURED PROPERTIES OF MATERIAL

Compressive Strength	7000 – 7500 psi
Flexural Strength	8000 – 8500 psi
Hardness	80 – 85
Tensile Strength	4500 – 5000 psi
Elongation at Break (%)	1.5
Shear Strength	2000 – 2500 psi
Salt Spray Resistance	5000 hours
