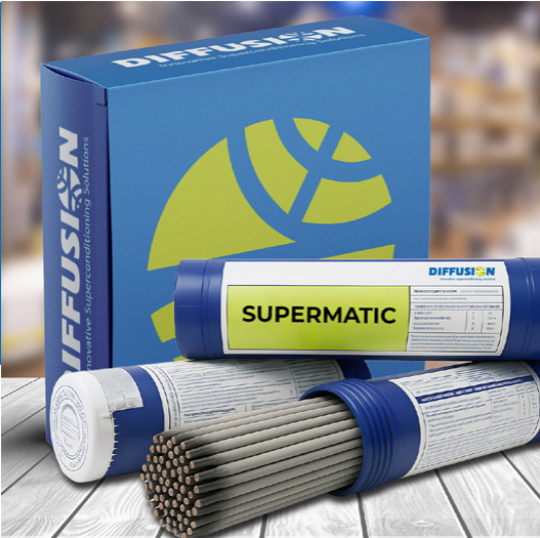

SUPERMATIC

SUPERMATIC

‘LoTemp’ electrode for all position contact welding with minimum heat input, very low distortion & warpage.

PRODUCT DESCRIPTION:

• Designed for low carbon steel welding
• Low heat input & very low distortion
• All-position contact welding
• Smooth, clean weld finish

Add to List

Applications

STANDARD:

ASME SEC-II-C
AWS SFA 5.1, E6013

ALLOYING ELEMENTS:

C, Si, Mn

TENSILE STRENGTH:

50 Kgf/mm2 (min)

ELONGATION:

22% (min)

IMPACT AT:

47J (min)

PACKAGE SIZES:

5 KG, 20 KG

TIP COLOR

YELLOW

COATING COLOR

LIGHT GREY



Size Welding Amperage
2.5 mm 60-90 A
3.15 mm 80-120 A
4.00 mm 110-170 A
5.00 mm 140-200 A

Product Specification

• Minimal warpage
• Excellent bead appearance
• Self-releasing slag
• Suitable for all type of M.S. jobs

• Low carbon
• Silicon and Manganese alloyed

• Grind fatigued metal

• Right-angle travel technique

• Do not weave during contact welding

• Avoid arc gap where distortion and positional welding are important

• Thin sheet fabrication

• Fabrication of tanks, pipelines, containers

• Sugar mill roller journals, shafts
