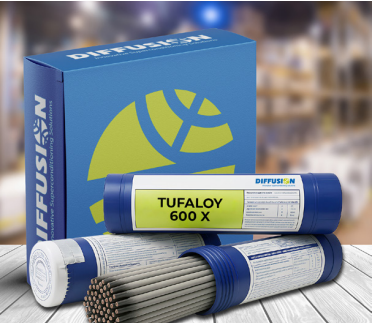

TUFALOY 600 X

TUFALOY 600 X

Highly alloyed anti-wear austenitic electrode with superior toughness, work-hardening and crack-free deposits for railway track repair.

PRODUCT DESCRIPTION:

TUFALOY 600 X is a specially formulated austenitic electrode with low heat input, designed for overlaying on track components of medium carbon, low alloy, medium manganese and Hadfield manganese steels. Its advanced alloy chemistry delivers extremely high toughness, rapid work-hardening, and excellent resistance to flow fatigue under pounding and impulsive loads. The deposits are crack-free and eliminate the need for a cushion layer, making it ideal for demanding railway applications.

Add to List

Applications

STANDARD:

ASME SE C-11-C
AWS-5.13- E FeMnCr

ALLOYING ELEMENTS:

C, Si, Mn, Cr, Mo, Ni, V

HARDNESS:

AS DEPOSITED: 220 – 240 BHN
WORK HARDENED: 420 –475 BHN

TIP COLOR

IVORY

COATING COLOR

LIGHT GREY

Size Welding Amperage
3.15 mm 100-120 A
4.00 mm 120-160 A
5.00 mm 150-200 A

Product Specification

• Highly alloyed anti-wear austenitic electrode
• Superior toughness with rapid work-hardening
• Excellent resistance to flow fatigue and impact loads
• Crack-free weld deposit with low heat input
• Eliminates cushion layer requirement

• Austenitic manganese steel matrix
• Special alloy chemistry with work-hardening elements
• Crack-resistant formulation for high fatigue conditions

• Gouge out and grind fatigued base metal.
• Use short, stringer beads for controlled deposition.
• Ensure interpass temperature does not exceed 250 °C.

• Railway points
• Crossings
• Switches
• Other high-impact rail components
