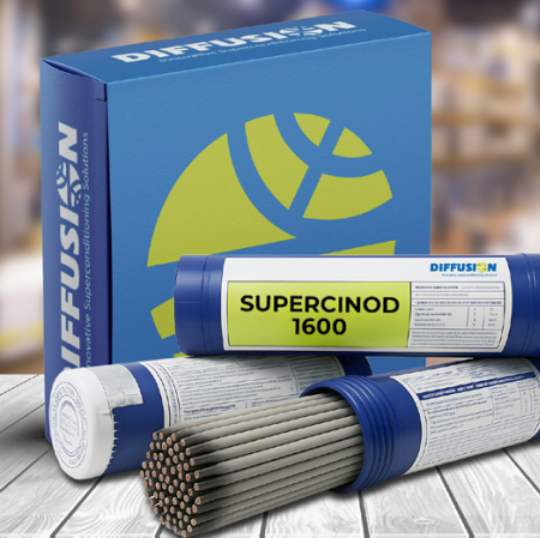

SUPERCINOD 1600

SUPERCINOD 1600

Low-temp electrode for ductile, crack resistant welding of grey and nodular cast iron.

PRODUCT DESCRIPTION:

• Low heat input electrode
• Excellent crack resistance
• Smooth bead, no undercuts
• All-positional welding capable

Add to List

Applications

STANDARD:

ASME SEC-II-C
AWS 5.15, ENiFeCI

ALLOYING ELEMENTS:

C, Si, Mn, Ni, Fe

HARDNESS

180 BHN

TENSILE STRENGTH:

40 kgf/mm2

PACKAGE SIZES:

5 KG, 20 KG

TIP COLOR

PALE

COATING COLOR

LIGHT GREY



Size Welding Amperage
2.15 mm 50-80 A
3.15 mm 80-120 A
4.00 mm 100-140 A
5.00 mm 120-170 A

Product Specification

• Ideal for nodular iron
• Welds without transverse cracks
• Strong, ductile weld deposit
• Good for cast-to-steel joints

• Nickel-iron alloy
• Graphite stabilizers
• Low carbon dilution
• Non-carbide forming mix

• Grind crack U shape
• Use low current
• 20–30mm stringer beads
• Peen deposits while hot

• Exhaust manifolds
• Oil & bearing castings
• Pipe-to-cast joints
