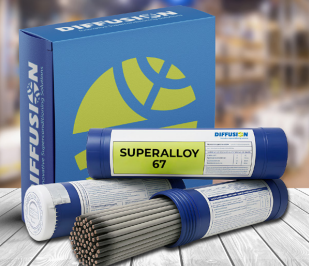

SUPERALLOY 67
C-Cr-V alloyed electrode for elevated temperature abrasion and scratch resistance.
PRODUCT DESCRIPTION:
• Highly alloyed C-Cr-V electrode
• Designed for extreme abrasive wear at elevated temperatures
• Vanadium improves grain structure and matrix integrity
• Ideal for high-stress scratch abrasion
Applications
STANDARD:
DIN EN 14700 EFe 16-65-GZT
ALLOYING ELEMENTS:
C, Si, Mn, Cr,V
HARDNESS:
63-67 HRC
PACKAGE SIZES:
4 KG, 16 KG
TIP COLOR
DARK BROWN
COATING COLOR
DARK GREY
| Size | Welding Amperage |
|---|---|
| 3.15 mm | 90-130 A |
| 4.00 mm | 130-160 A |
| 5.00 mm | 160-190 A |
Product Specification
• Vanadium for fine grain structure
• Withstands matrix washout and abrasion
• Effective under high-stress scratching
• Consistent performance at high temperatures
• Chromium-vanadium alloy matrix
• Fine grain structure for scratch resistance
• Clean surface properly
• Use AC or DC+ power
• Maintain short arc with slight weave
• Consistent stringer beads recommended
• Coal mining tools
• Cement and mineral processing parts
• Abrasive components
