CORDIFF 802 IMP

A tubular wire electrode for hardfacing, designed to protect parts from severe abrasion and moderate impact.

PRODUCT DESCRIPTION:

This is a specially developed tubular wire electrode that produces a highly alloyed deposit of C-Cr-B. The alloy consists primarily of carbides, borides, and other complex carbides, providing excellent toughness for its high hardness range.

Add to List

Applications

STANDARD:

NA

ALLOYING ELEMENTS:

C Cr Ni B

HARDNESS:

59 – 64 HRC

PACKAGE SIZES:

Spool- 15, 25 Kg
Drum- 200-250 Kg



DIA(Ø) VOLTAGE AMPERAGE
1.6 22-26 180-240
2.0 23-28 220-260
2.4 25-30 260-320
2.8 26-31 300-360

Product Specification

• Produces a highly alloyed C-Cr-B deposit.
• Designed for hardfacing against severe abrasion and moderate impact.
• Offers excellent toughness at a high hardness level.

• The weld deposit is highly alloyed with Carbon, Chromium, and Boron (C-Cr-B) and is primarily composed of carbides, borides, and other complex carbides.

• Gouge out or grind worn, damaged, and fatigued metal or cracks before welding.
• Preheat is generally not required, except for very heavy sections.

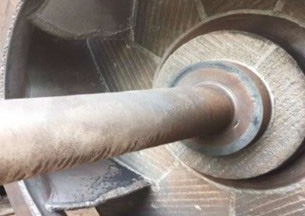

• Hardfacing for parts used in coal mining, and the cement, steel, and mineral industries.
