XALOY 52

XALOY 52

Highly alloyed anti-wear electrode with excellent toughness and work hardening properties for impact conditions.

PRODUCT DESCRIPTION:

Highly alloyed anti-wear electrode designed for overlaying, cushioning and building up low/medium carbon steels, low alloy steels, and Hadfield maganese steels. The deposit is extremely tough, resists deformation under repeated pounding, and rapidly work-hardens during service under impact conditions.

Add to List

Applications

STANDARD:

ASME SEC-11-C
AWS-5.13- EFeMnCr

ALLOYING ELEMENTS:

C, Si, Mn, Cr, Mo, Ni, V

HARDNESS:

AS DEPOSITED: 22 – 25 HRC
WORK HARDENED: 45 – 50 HRC

TIP COLOR

IVORY

COATING COLOR

WHITE

Size Welding Amperage
3.15 mm 100-120 A
4.00 mm 120-160 A
5.00 mm 150-200 A

Product Specification

• Excellent anti-wear properties with low amp operation
• High toughness and resistance to impact loading
• Rapid work-hardening under service conditions
• Suitable for both overlaying and cushioning applications

• Tough, Mn-Cr alloy matrix
• Work-hardening components for impact resistance
• Specially formulated to withstand pounding and deformation

• Gouge out/grind worn and fatigued metal before welding.
• Use AC/DC+ power source.
• Apply short, stringer beads; chip slag and peen deposits while hot.
• Do not allow manganese steel temperature to exceed 250 °C.

• Repair of railway points and crossing switches

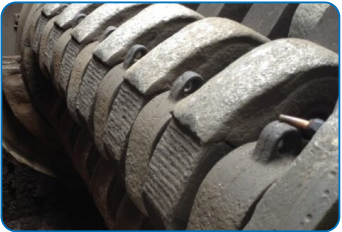

• Mill hammers
• Crusher mantles
• Shredder hammers
