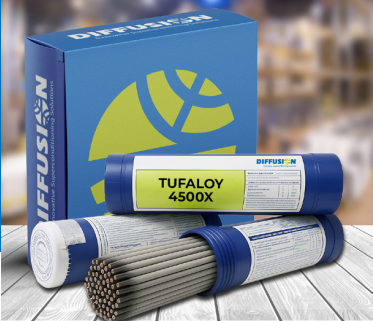

TUFALOY 4500X
High strength, high ductility anti-wear low heat input electrode with stainless steel core wire, ideal for base layer on manganese steels and railway track components.
PRODUCT DESCRIPTION:
Specially developed anti-wear electrode with stainless steel core wire, designed to deliver optimum chemistry for high toughness and ductility. Its advanced core wire and coating formulation provide a crack-resistant, fully austenitic weld deposit free from intergranular carbides. The electrode is ideal for heavy impact, rolling friction, and abrasion for manganese steels and railway points & crossings.
Applications
STANDARD:
ASME SEC-11-C
AWS 5.13, EFeMnCr
ALLOYING ELEMENTS:
C, Si, Mn, Cr, Mo, Ni
HARDNESS:
AS DEPOSITED: 200-230 BHN
WORK HARDENED: 43-48 HRC
TIP COLOR
ORANGE
COATING COLOR
LIGHT GREY
| Size | Welding Amperage |
|---|---|
| 3.15 mm | 90-120 A |
| 4.00 mm | 120-150 A |
| 5.00 mm | 150-200 A |
Product Specification
• Stainless steel core wire ensures balanced weld chemistry
• High ductility and strength with excellent impact resistance
• Crack-resistant, fully austenitic weld matrix
• Free from intergranular carbides
• Ideal base layer electrode for manganese steels and railway track components
• Austenitic stainless steel matrix
• Special alloying elements for toughness and ductility
• Carbide-free micro structure with high crack resistance
• Gouge out and grind fatigued base metal before welding.
• Use short and stringer beads to control heat input.
• Do not allow magnese steel temparature to exceed 200° C
• Hot peening of weld bead recommended.
• Very heavy impact applications
• Crusher and excavator equipment
• Railway points, crossings, and switches
• Mill hammers and blow bars
