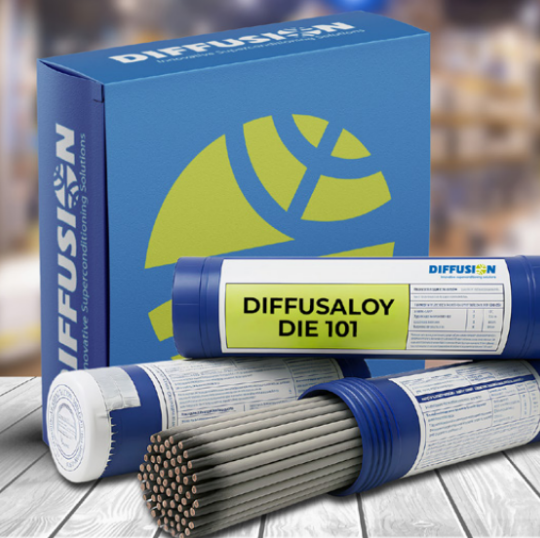

DIFFUSALOY DIE 101

DIFFUSALOY DIE 101

High-alloy Cr-Ni-Mo-W-Co electrode for forging die repair under extreme load and temperature.

PRODUCT DESCRIPTION:

• Advanced alloy for die repair
• Withstands high impact & heat
• Excellent strength and ductility
• Crack-resistant weld deposits

Add to List

Applications

STANDARD:

DIN EN 14700 E Fe 3-45-SPT

ALLOYING ELEMENTS:

C, Si, Mn, Cr, Mo, Ni, V, Co, W

HARDNESS:

37 – 42 HRC

PACKAGE SIZES:

5 KG – 20 KG



Size Welding Amperage
3.15 mm 80-120 A
4.00 mm 120-150 A
5.00 mm 150-190 A

Product Specification

• High hot-strength and toughness
• Enhanced thermal fatigue resistance
• Good friction and wear properties
• Suitable for all positions

• Chromium
• Nickel
• Molybdenum
• Tungsten & Cobalt

• Remove fatigued metal thoroughly
• Use AC/DC+, short-medium arc
• Slight weave stringer beads
• Preheat high carbon steel to 250°C
• Air cool and peen while hot

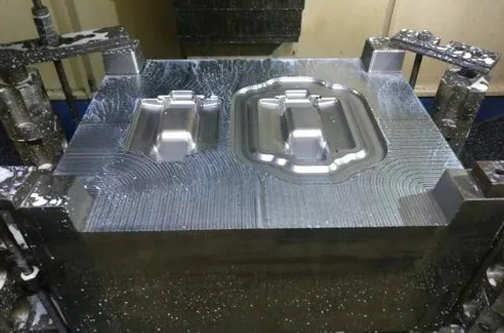

• Forging dies, hammer bases

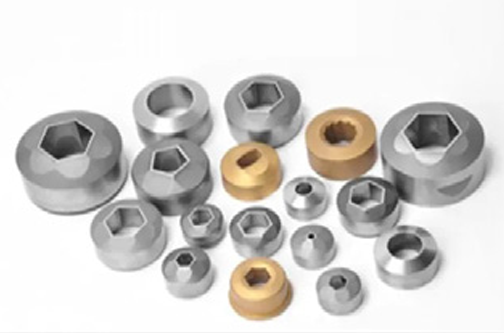

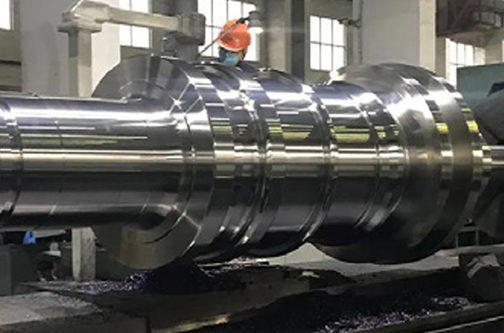

• Cold mill rolls, insert dies
• Anvil blocks, dovetails
