DIFF DUR CS

DIFF DUR CS

Sintered tungsten carbide fragments in a ductile nickel bronze matrix for extreme wear-resistant hardfacing.

PRODUCT DESCRIPTION:
• Contains sintered tungsten carbide fragments embedded in ductile nickel bronze matrix.
• Special flux coating for de-oxidation and cleaning during deposition.
• All steel cutting grades are fully tinned for enhanced bonding.

Add to List

Applications

ALLOYING ELEMENTS:

FTC-60% & Fe-Matrix-40%

HARDNESS:

CARBIDES HARDNESS : 1500
HV (89 – 93 HRA)
MATRIX ALLOY HARDNESS :
180 HV (87 – 95 HRB)

STANDARD PACKING SIZE:

5 & 10 Kg of Spool

SIZES AND COLOUR CODE:

PLUS 1.5MM TO MINUS 3.2MM – PINK
PLUS 3.2MM TO MINUS 5.0MM – YELLOW
PLUS 5.0MM TO MINUS 6.0MM – BLUE
PLUS 6.0MM TO MINUS 10.0MM – GREEN
LENGTH: 450 MM

COMPOSITION:

FTC with Fe matrix

Product Specification

• Exceptional resistance to abrasion and impact.
• Strong bonding to tinned surfaces.
• Reliable performance in severe service conditions.

• Sintered tungsten carbide fragments.
• Ductile nickel bronze matrix.
• Flux coating with de-oxidizing properties.

• Clean surface of rust, scale, oil, and dirt.
• Preheat slowly to max 500 °C.
• Tin surface with DIFF DUR TINNING rods (~1 mm thick layer).
• Apply DIFF DUR CS on the tinned surface.

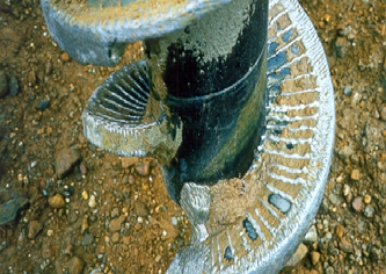

• Downhole reamers, openers, fishing tools (spears).
• Coring tools, rotary cutters, milling tools.
• Overshots, drills, stabilizers.
• Earthmoving buckets, mixers, shovels.
