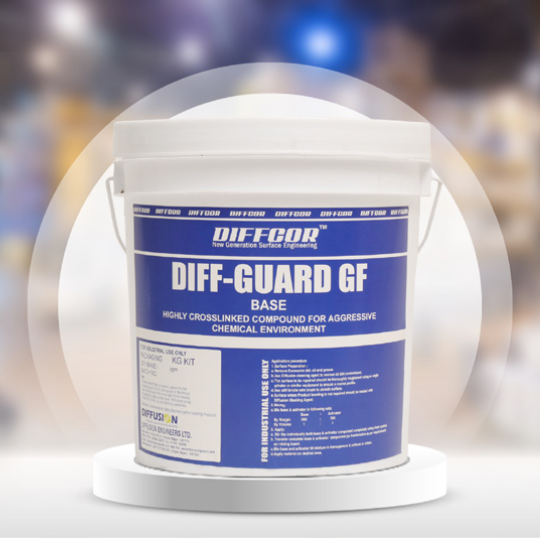

DIFF GUARD GF

DIFF GUARD GF

Glass flake reinforced epoxy novolac coating for severe acid and abrasion resistance.

DESCRIPTION:

DiffGuard-GF is an improved version of DiffGuard coating filled with highly corrosion resistant glass flake, designed for aggressive chemical and abrasive environments.

Add to List

Applications

Product Specification

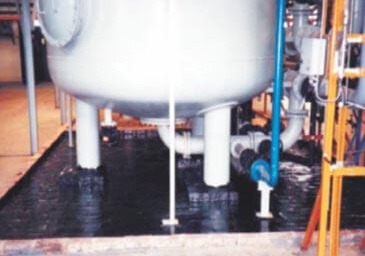

Trenches, contaminant vessels, tank linings, acidic floors, exterior coating of pipelines, steel structures



Technology Epoxy Novolac
Chemical Type Epoxy
Components Two-component
Cure Mechanism Room temperature cure
Temperature Range (°C) Up to 150
Appearance – Base White
Appearance – Hardener Pale Yellow
Appearance – Mixed Off White
Mix Ratio (Volume) 1:1
Mix Ratio (Weight) 1:1



Viscosity – Base Paste
Viscosity – Hardener Liquid
Viscosity – Mixed Semisolid/Paste
Weight per Liter-Base (kg) 1.18
Weight per Liter-Hardener (kg) 0.985
Coverage 0.45 m² @ 1mm / kg



Compressive Strength 7000 – 7500 psi
Flexural Strength 8000 – 8500 psi
Hardness 80 – 85
Tensile Strength 4500 – 5000 psi
Elongation at Break (%) 1.5
Shear Strength 2000 – 2500 psi
Salt Spray Resistance 5000 hours
