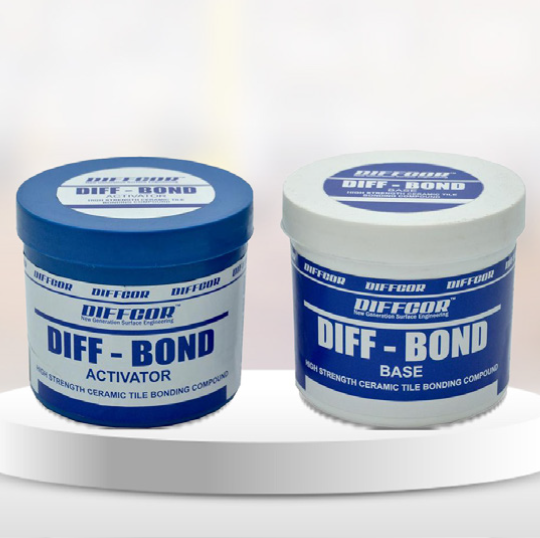

DIFF BOND

DIFF BOND

High strength epoxy adhesive for metals, ceramics and concrete.

DESCRIPTION:

DIFF-BOND is a high-strength epoxy bonding compound for metallic, non-metallic and ceramic materials with high shear strength and dimensional stability.

Add to List

Applications

Product Specification

Ceramic bonding, metal bonding, concrete repair



Technology Vinyl Ester
Chemical Type Vinyl
Components Two-component
Cure Mechanism Room temperature cure
Temperature Range (°C) 20–170
Appearance – Base White
Appearance – Hardener Off White
Appearance – Mixed White / Off White
Mix Ratio (Volume) 1:1
Mix Ratio (Weight) 1:1



Viscosity – Base Paste
Viscosity – Hardener Paste
Viscosity – Mixed Paste
Weight per Liter-Base (kg) 1.5
Weight per Liter-Hardener (kg) 0.915
Coverage 0.2 m² @ 2mm / kg



Compressive Strength 7000 – 7500 psi
Flexural Strength 8000 – 8500 psi
Hardness 80 – 85
Tensile Strength 4500 – 5000 psi
Elongation at Break (%) 1.5
Shear Strength 2000 – 2500 psi
Salt Spray Resistance 5000 hours
