CORDIFF 68 OA

CORDIFF 68 OA

Open arc flux-cored wire for extreme mineral wear resistance up to 800 °C with a hard ledeburitic carbide-rich deposit.

PRODUCT DESCRIPTION:

• Very high C-Cr-B alloyed open arc wire for extreme mineral wear
• Operates effectively at temperatures up to 800 °C
• Weld deposit forms a ledeburitic structure with hypereutectic carbides
• Minimal slag, excellent weldability, effective in 1–2 layer deposits

Add to List

Applications

STANDARD:

DIN EN 14700 T Fe 15-70-CGZ

ALLOYING ELEMENTS:

C, Si, Mn, Cr, B

HARDNESS:

66-68 HRC

PACKAGE SIZES:

Spool- 15, 25 Kg
Drum- 200-250 Kg



DIA(Ø) 1.6 2.0 2.4 2.8
VOLTAGE 22-26 22-26 24-27 25-28
AMPERAGE 160-260 240-280 280-340 320-360

Product Specification

• Excellent resistance to mineral wear and thermal degradation
• High-temperature hardness retention (only ~10% loss at 650 °C)
• Suitable for non-corrosive, low-impact environments
• Recommended with buffering layer on sensitive or pre-hardened surfaces

• High Carbon and Chromium
• Boron for carbide formation
• Hypereutectic carbides in a hard matrix
• Ledeburitic structure with thermal wear stability

• For optimum results, perform welding in two layers.
• The resulting weld deposits cannot be heat treated, machined, or forged.
• When overlaying previously hard-faced surfaces, use a buffer layer of Cordiff 200K or Cordiff 250K before applying the final layer.

• Iron ores

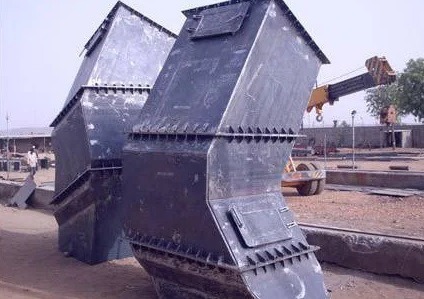

• Coal chutes
• Coke oven screens
• Pulverizer hammers
